Thermoplastic Valves

UNPLASTICIZED POLYVINYL CHLORIDE (U-PVC) VALVES

The U-PVC range includes ball valves, butterfly valves, diaphragm valves as well as check valves, sediment strainers, air release, foot valves, angle seat valves to be used at working operating temperatures range from 0°C to 60°C and working pressure classes PN16.

    Supply Range:

  • Ball valves: from Ø 16 mm to Ø 110 mm
  • Butterfly valves: from Ø 50 mm to Ø 400 mm
  • Diaphragm valves: from Ø 12 mm to Ø 110 mm
  • Check valves: from Ø 16 mm to Ø 110 mm
  • Sediment strainer: from Ø 16 mm to Ø 110 mm
U-PVC Valves

POLYPROPYLENE (PP-H) VALVES

U-PVC Valves

The PP-H range in homopolymer Propylene includes a complete series of ball valves, butterfly valves, diaphragm valves, check valves, sediment strainers, pipes, fittings for socket and butt welding, to be used at working operating temperatures 0°C of 100°C and working pressure classes PN10.

    Supply Range:

  • Ball valves: from Ø 16 mm to Ø 110 mm
  • Butterfly valves: from Ø 50 mm to Ø 400 mm
  • Diaphragm valves: from Ø 16 mm to Ø 110 mm
  • Check valves: from Ø 16 mm to Ø 110 mm
  • Sediment strainer: from Ø 20 mm to Ø 110 mm

POLYVINYLIDENE DIFLUORIDE (PVDF) VALVES

The range in PVDF includes a complete series of ball valves, butterfly valves, diaphragm valves, check valves to be used the working operating temperature range from –40°C to 140°C and working pressure classes PN16. The entire range is produced in Solef® resins by SOLVAY S.A.

    Supply Range:

  • Ball valves: from Ø 16 mm to Ø 110 mm
  • Butterfly valves: from Ø 50 mm to Ø 400 mm
  • Diaphragm valves: from Ø 16 mm to Ø 110 mm
  • Check valves: from Ø 16 mm to Ø 110 mm
  • Sediment strainer: from Ø 16 mm to Ø 110 mm
PVDF Valves

CHLORINATED POLYVINYL CHLORIDE (C-PVC) VALVES

C-PVC Valves

The C-PVC TEMPERFIP100 system includes a complete range of ball valves, butterfly valves, diaphragm valves, check valves and sediment strainers to be used at working operating temperatures of 0°C to 100°C and working classes PN16. The entire range is made of CORZAN™ C-PVC resins.

    Supply Range:

  • Ball valves: from Ø 16 mm to Ø 110 mm
  • Butterfly valves: from Ø 50 mm to Ø 315 mm
  • Diaphragm valves: from Ø 20 mm to Ø 110 mm
  • Check valves: from Ø 20 mm to Ø 63 mm
  • Sediment strainer: from Ø 20 mm to Ø 110 mm

ACRYLONITRILE BUTADIENE STYRENE (ABS) – VALVES

The SuperFLO ABS range includes ball valves, butterfly valves, diaphragm valves as well as check valves, sediment strainers, air release, angle seat valves to be used at working operating temperatures range from -40°C to 70°C and working pressure classes PN16.

    Supply Range:

  • Ball valves: from Ø 16 mm to Ø 110 mm
  • Butterfly valves: from Ø 50 mm to Ø 400 mm
  • Diaphragm valves: from Ø 12 mm to Ø 110 mm
  • Check valves: from Ø 16 mm to Ø 110 mm
  • Sediment strainer: from Ø 16 mm to Ø 110 mm
ABS Valves

PLASTIC VARIABLE AREA FLOWMETERS IN U-PVC, TROGAMID (PA) & POLYSULFONE (PSU)

Plastic Variable Area Flowmeters

These flowmeters operate according to the variable area principle, where a float is suspended in upward flowing media in a tapered plastic tube. The vertical position of the float within the metering tube depends on the flowrate of the media. The metering tube is graduated in suitable flow units and the reading is taken in correspondence with the top edge of the float. Versions for liquids and gases are available, providing accurate and cost-effective measurement with engineering scales in l/h and Nm3/h. Used at operating temperatures range from 0°C to 100°C & pressure PVC-U, PVC-C, PP end connectors: PN10. Carbon Steel, Stainless Steel end connectors: PN16.

    Supply Range:

  • Size: Ø 16 mm to Ø 75mm
  • Tube Material: PVC-U, PA, PSU
  • Seal material: EPDM supplied as standard, FPM(VITON)
  • Float material: Red PP, AISI 316 Stainless Steel

FIP INDUSTRIAL VALVES FOR CHEMICAL APPLICATIONS

    Available in UPVC / PP / PVDF / ABS /CPVC:

  • Two-way Ball Valve 16 – 110 mm
  • Three-way Ball Valve 20 – 63 mm
  • Diaphragm Valve 20 – 110 mm
  • Butterfly Valve 50 – 400 mm
  • Sediment Strainer 16 – 110 mm
  • Check Valve 16 – 110 mm
  • Angle Seat Valve 16 – 110 mm
  • Air Release Valve 20 – 63 mm
  • Foot Valve 16 – 63 mm
  • Ball Check 20 – 63 mm
  • Angle Seat Pressure Release Valve 20 – 32 mm
  • Electronically Operated Solenoid Valve 2 – 20 mm
  • Durapipe ABS Valves
FIP Industrial Valves

THERMOPLASTIC VALVES FOR WATER AND NON-AGGRESSIVE CHEMICALS

Thermoplastic Valves

    Available in UPVC:

  • Two-way Ball Valve 16 – 160 mm
  • Three-way Ball Valve 16 – 63 mm
  • Butterfly Valve 50 – 225 mm
  • Check Valve – Wafer 40 – 315 mm
  • Check Valve – Ball – No spring 20 – 90mm
  • Check Valve – Ball – With SS spring – 20-90MM
  • Air Release Valve 20 – 90 mm
  • Foot Valve 20 – 90 mm
  • Ball Check 20 – 63 mm

    FIP Flowmeters for Water:

  • Sizes 20 – 75mm
  • Flowrate: from 2 l/hr to 50 000 l/hr
  • Materials: Transparent U PVC

AUTOMATED VALVES

    Actuated Valves for specialized applications:

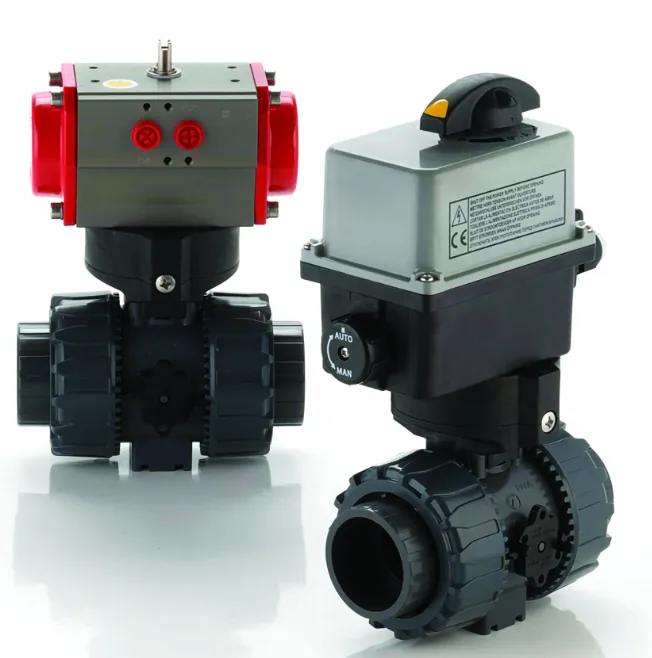

  • FIP Ball, Butterfly and Diaphragm Valves can be pneumatically or Electrically actuated on request.
FIP Ball Valve
FIP Industrial Valves FIP Industrial Valves
