Thermoplastic Fittings & Pipes

Astore Keymak offer the full comprehensive range of thermoplastics that makes customers from all over sub-Saharan Africa successful in the widely differing industries. As a reliable experienced supplier of quality products, we offer everything from injection moulded fittings and extruded pipe as well as semi-finished products from a single worldwide Recognized and established supplier.

POLYETHYLENE (PE100-RC)

PE100-RC is a type of high-density polyethylene pipe and fittings that are used for various applications such as Water supply, gas distribution and Sewer systems. It is known for its strength, durability and resistance to light chemicals and UV radiation. Temperature range -40 to 60 deg C

    Supply Range:

  • Full Pressure rated injection moulded Fittings, in the following sizes Dia 20 TO 500MM in PN10 and PN16.
  • Pipes in PE100-RC Dia 20- 3250MM OD in PN4 TO PN25
  • Electrofusion fittings in Dia 20-225 PN16
  • Socket Fusion 20-110mm
  • Double containment piping systems

    Semi-finished products:

  • Sheets in 2×1,3×1.5 and 4×2 in various thicknesses in PE100-RC
  • Concrete protective liners 4×2 in various thicknesses
  • Hydro click Concrete protective system -in Polyethylene 80 (Blue)
  • Solid Bar in Dia 15-640mm
  • Welding Rod in Dia 3,4 and 5mm Round and 5×3 Triangular.
Polyethylene

POLYPROPYLENE (PP)

Polypropylene

Polypropylene is a synthetic resin built up by the polymerization of propylene. One of the important family members of the Polyolefin resins, polypropylene is a tough, flexible, and light weight and Can Handle temperature of -5 to 90 deg C.

    Supply Range:

  • Full Pressure rated injection moulded Fittings, in the following sizes Dia 20 TO 500MM in PN6 and PN10.
  • Pipes in PE100-RC Dia 20-
  • Electrofusion Couplings in Dia 20-355 PN10
  • Socket Fusions fittings 20-110mm
  • Double containment piping systems

    Semi-finished products:

  • Sheets in 2×1,3×1.5 and 4×2 in various thicknesses.
  • Concrete protective liners in various thicknesses
  • Solid Bar in Dia 15-640mm
  • Welding Rod in Dia 3,4 and 5mm Round and 5×3 Triangular.

POLYVINYLIDENE FLUORIDE (PVDF)

PVDF is an extremely pure polymer which, compared to many other plastics, does not contain any stabilizers, UV thermostablizers, plasticizers, lubricants or flame retarding additives. It’s particularly suitable for the transport of highly aggressive media such as Hydrochloric acid or sulphuric acid. The temperature range of PVDF is -20 to 120 deg C.

    Supply Range:

  • Full Pressure rated injection moulded Fittings, in the following sizes Dia 20 to 280mm PN10 and PN16 for Butt-weld and IR welding.
  • Pipes in PVDF IN Dia 20-400mm
  • Electrofusion fittings in Dia 20-63mm PN16
  • Socket Fusion in Dia 20-110mm
  • Double containment piping systems

    Semi-finished products:

  • Sheets in 2×1 and 3×1.5 in various thicknesses.
  • Concrete protective liners in various thicknesses
  • Solid Bar in Dia 10-340mm
  • Welding Rod in Dia 3 and 4mm Round and 5×3 Triangular.
  • Liners in Dia 20 to 400mm

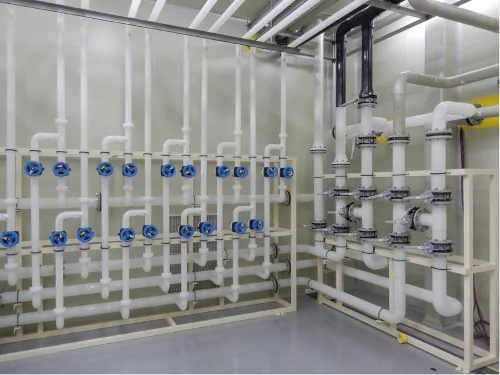

Polyvinylidene Fluoride

ETHYLENE- CHLOROTRIFLUOROETHYLENE (ECTFE)

ETHYLENE-CHLOROTRIFLUOROETHYLENE

ECTFE is characterized by a unique combination of properties, which is the result of its chemical structure, a copolymer with an alternating construction of ethylene and chlorotrifluoroethylene. It is UV and Y -Radiation resistant, flame retardant (UL 94 -VO MATERIAL), Excellent chemical resistance against most technical acids, alkalis and solvents as well as contact with chlorine, with a temperature rating of -30 to 140 deg C.

    Supply Range:

  • Full Pressure rated injection moulded Fittings, in the following sizes Dia 20 to 160mm PN16 for Butt-weld and IR welding.
  • Pipes in ECTFE in Dia 90-160mm

    Semi-finished products:

  • Sheets in 2×1250 and 3×1.5 and 2440×1220 in various thicknesses.
  • Concrete protective liners in various thicknesses
  • Solid Bar in Dia 20-100mm
  • Welding Rod in Dia 3, 3.5 and 4mm Round.
Astore Semi-finished Products

FM 1613 approved pipes and fittings - for reliable underground fire protection lines

For the application of underground fire protection systems, AGRU provides a comprehensive range of FM approved pipes, fittings and special items. These high-quality products are intended to protect assets and to minimise potential losses. FM approved products are objectively tested and in accordance to demanding international standards.

  • FM class 218 psi (15 bar, SDR 11)
  • Pipes (OD 63-630 mm)
  • Fittings (OD 63-630 mm)
  • FM class 250 psi (17.5 bar, SDR 9)
  • Pipes (OD 63-500 mm)
  • Fittings (OD 63-500 mm)

For further FM Approved product information please contact your nearest Astore Keymak branch.

FM Approved

POLY-FLO (DOUBLE CONTAINMENT PIPING SYSTEM)

Poly-Flo

ECTFE is characterized by a unique combination of properties, which is the result of its chemical structure, a copolymer with an alternating construction of ethylene and chlorotrifluoroethylene. It is UV and Y -Radiation resistant, flame retardant (UL 94 -VO MATERIAL), Excellent chemical resistance against most technical acids, alkalis and solvents as well as contact with chlorine, with a temperature rating of -30 to 140 deg C.

  • Material: PPR/PPR, PE 100-RC/PE 100-RC
  • Dimensions:

  • DIM 50/32 – SDR17/11
  • DIM 90/63 – SDR17/11
  • DIM 160/110 – SDR17/11
  • Elbows 90°, 45°
  • Tee
  • Lateral Tee
  • End Cap
  • Dog Bone
  • Elbow segmented 90°, 45°
  • Tee segmented
  • Stub Flange
  • Measuring Fitting
  • Reducer
Keymak PVC Pipes

SEMI-FINISHED (MADE FROM PE, PP, PVDF, ECTFE, FEP, PFA)

AGRU Semi-finished products made of thermoplastics are an excellent and durable solution for modern, premium apparatus and tank construction, and manufacturing of wear-resistant products. In the chemical and heavy industries, and in plant construction, a variety of requirements exist for semi-finished products in terms of acid and lye resistance, temperature changes and low static charge in areas with a risk of explosion (ATEX).

  • Polyethylene – PE
  • Polypropylene – PP
  • PVDF
  • ECTFE
  • FEP
  • PFA
  • AGRU liner pipes

    TYPICAL APPLICATIONS FOR PE:

  • Tank construction
  • Corrosion protection
  • Special parts for piping systems
  • Fixpoint lining
  • Steel lining
  • FRP dual laminate
Semi-finished Products
